Wiring diagram for 2 rear connectors -‘15 Rubicon

[WestCoastDan]

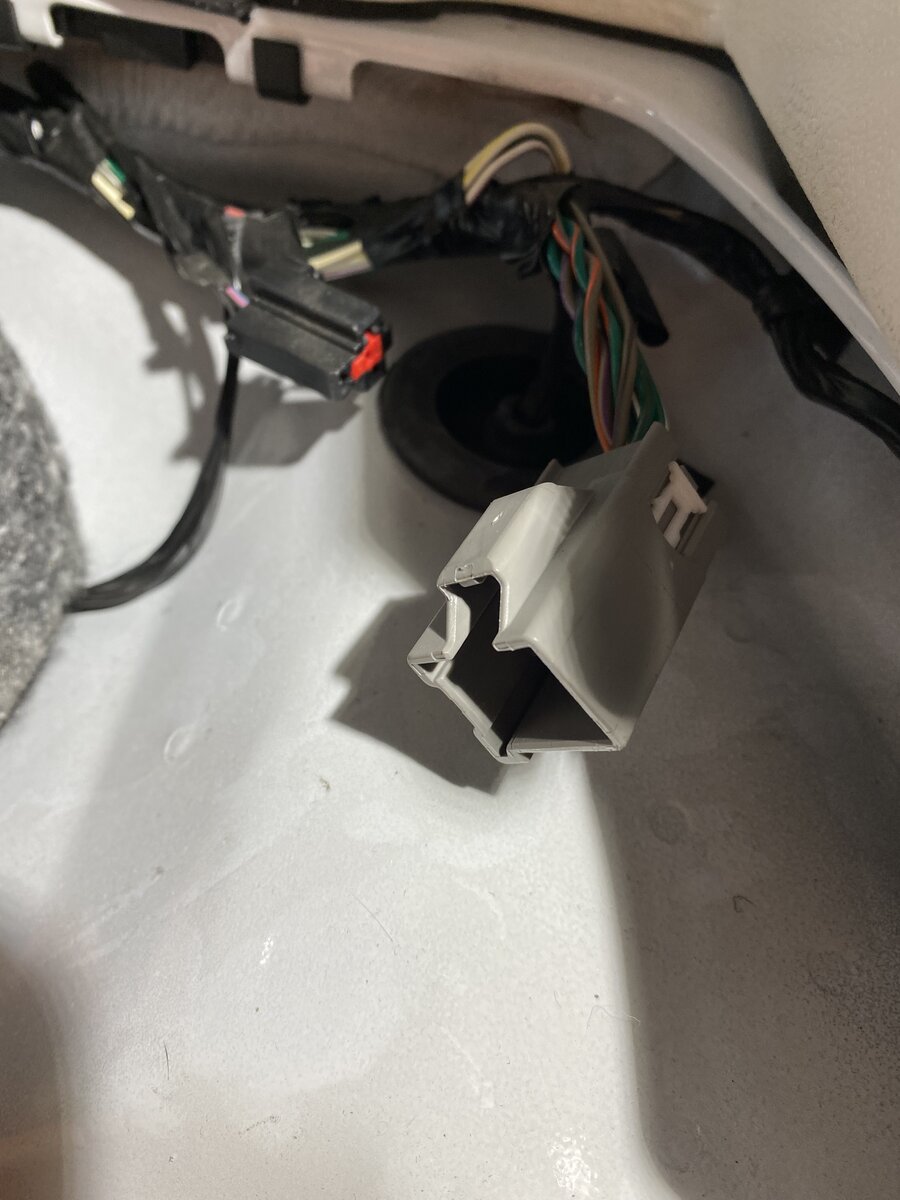

Can anyone shed light on where to get the wiring diagrams for these 2 connectors in the rear of our ‘15 Rubicon?
I’m wondering if there is a potential wire to tap my USB port into.

My USB port has a switch built in, so finding a constant hot would be ideal.
I am prepared to just extend the power from the center console back to the new dual port plug if needed.



[Jermbob28]

The small plug is for the 12v outlet if you had the sub and socket. I am deleting my sub and 12v out and putting a new 12v into the delete kit. I will be tapping into that plug, but I’ll have the other side and wiring since I already have the socket.

If you never had those I am pretty sure you will need to add a fuse in the fuse block because yours will mostly likely be empty.



[WestCoastDan]

I'm guessing that once a fuse is present, the 12V is only hot when the ignition/radio are on if it was to power the subwoofer.
I'm looking for a constant hot source, since my USB already has a switch & I would prefer to not need to turn the ignition on for it to have power (too many other power drains w/ignition on.)



[Jermbob28]

My rear 12v is always hot.



[WestCoastDan]

My rear 12v is always hot.

Thanks, I'll definitely have to dig out the meter and check.
Any clue what fuse would control that circuit?

I think I found it... 20A fuse shown as #M7.
Looks like this is going to be easier than I thought... when does that happen with a Jeep?



[Jermbob28]

Haha. Yeah I don’t know if the top of my head, but sounds right. Good luck!



[WestCoastDan]

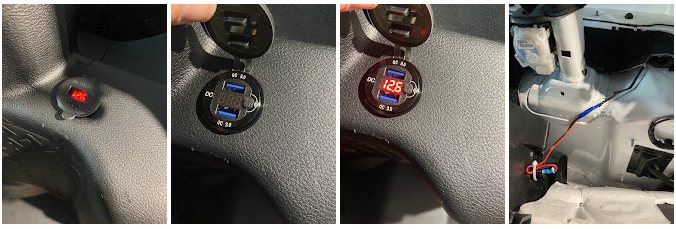

Got it finished, today, long with having a new windshield installed.
Next is a subwoofer to fill in the audio and then this baby is about done until serious upgrades occur.
