While this is far from being a new or an original idea, I don't think I've ever seen a good write-up for making your own Rotopax mount for an EVO tire carrier. Fortunately, it is cheap and super easy to do and this should help you out. Please note that the parts listed have been linked so that you can just click on them and buy what you need.
What you'll need:
Instructions

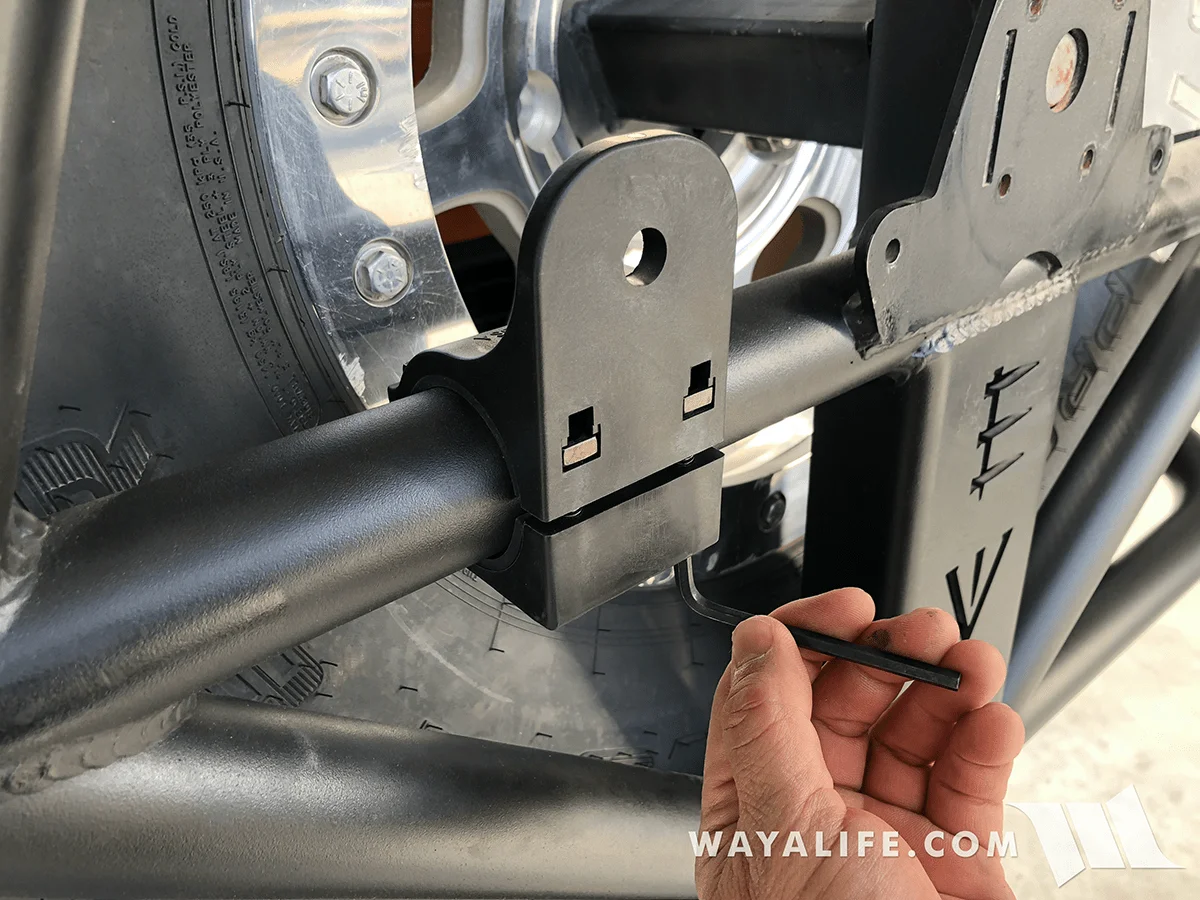

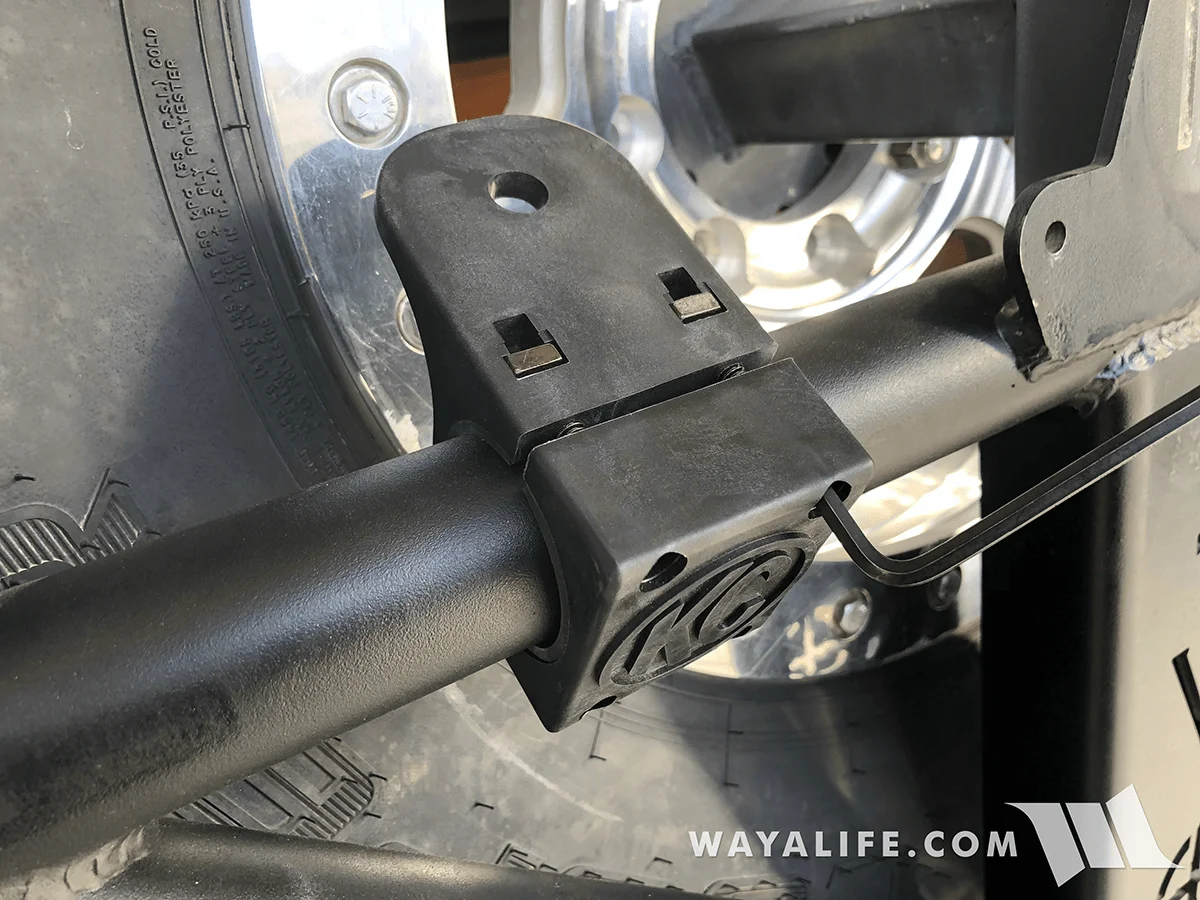

1. Install both of the KC Tube Clamps onto your EVO tire carrier and loosely secure them in place using the hardware provided. A 3/16" allen wrench will be needed for this job.

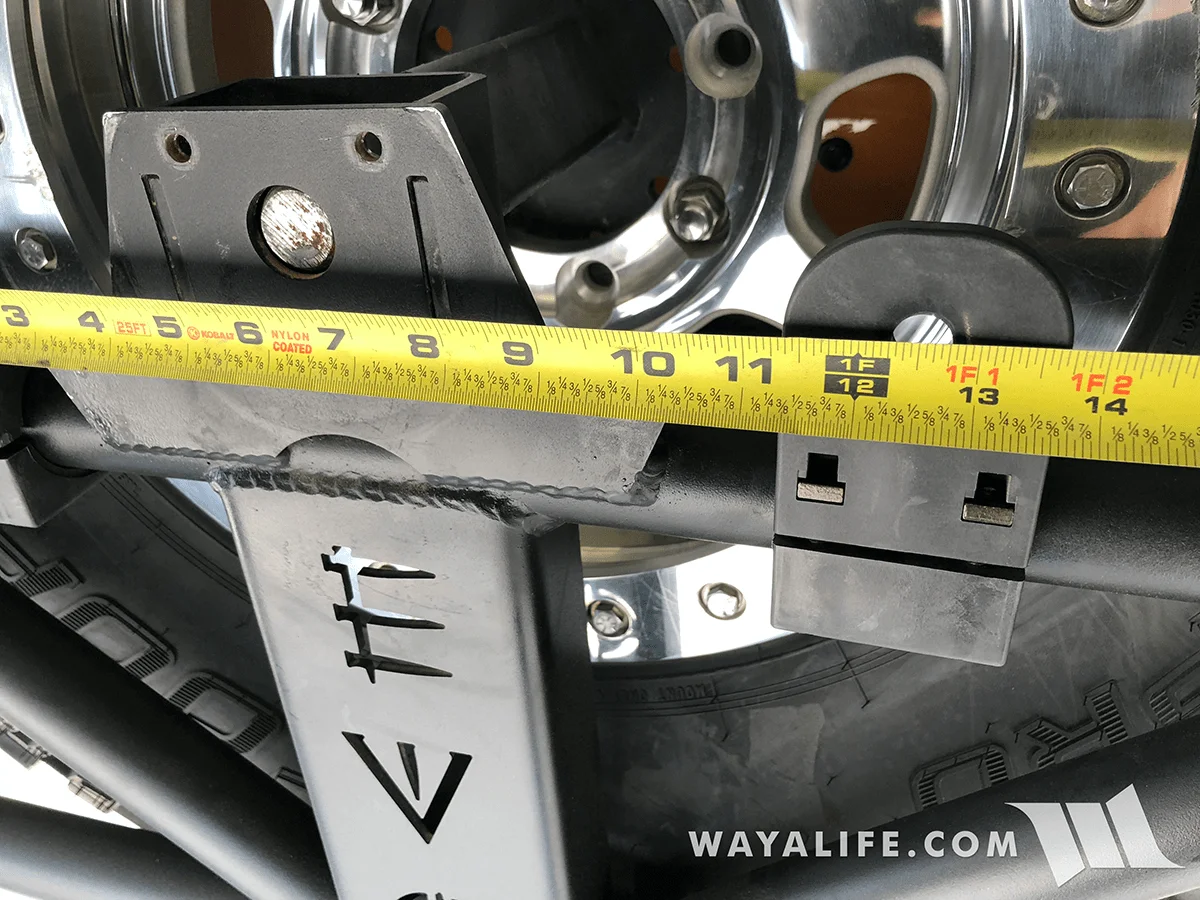

2. Spread the 2 KC Tube Clamps apart so that the center of the mounting holes measure 12-1/2" apart.
3. Using a 3/16" allen wrench, tighten the KC Tube Clamp bolts.

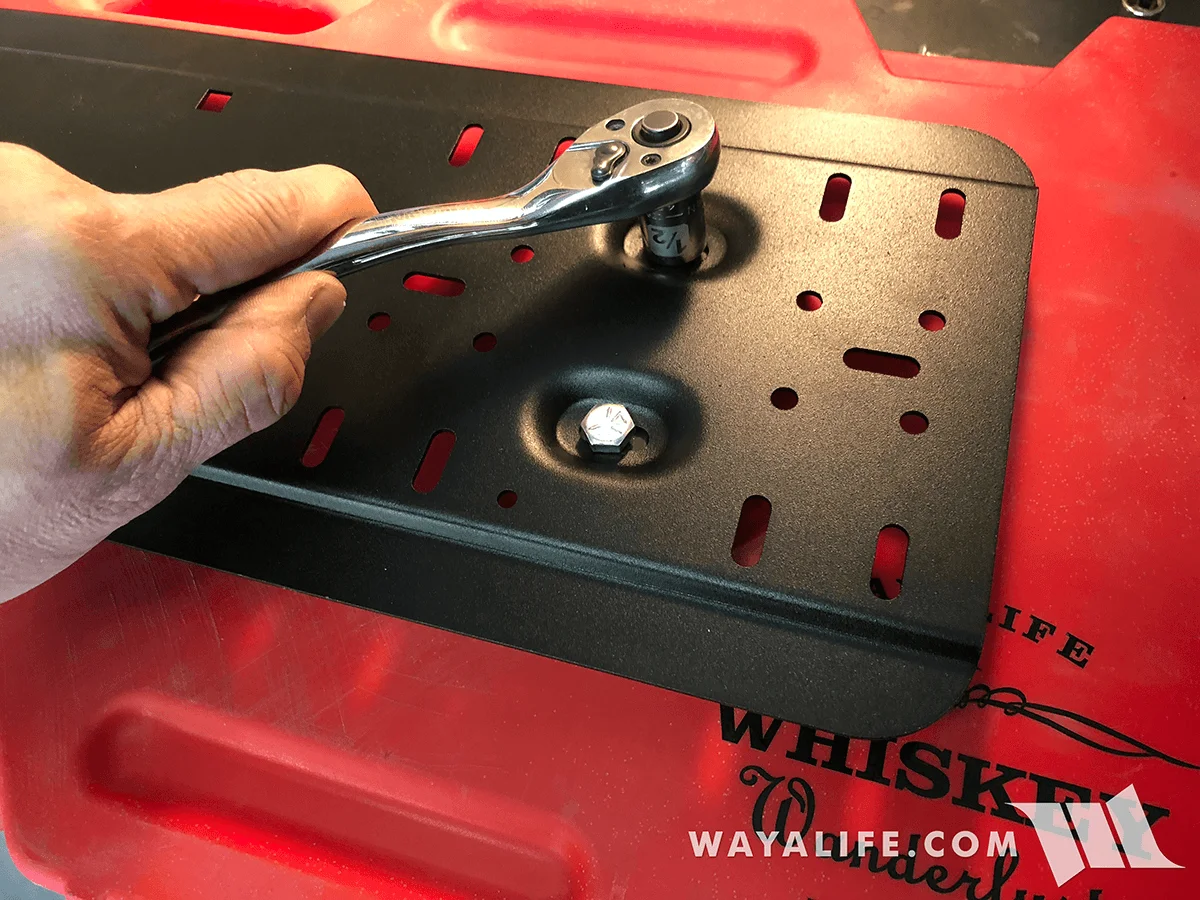

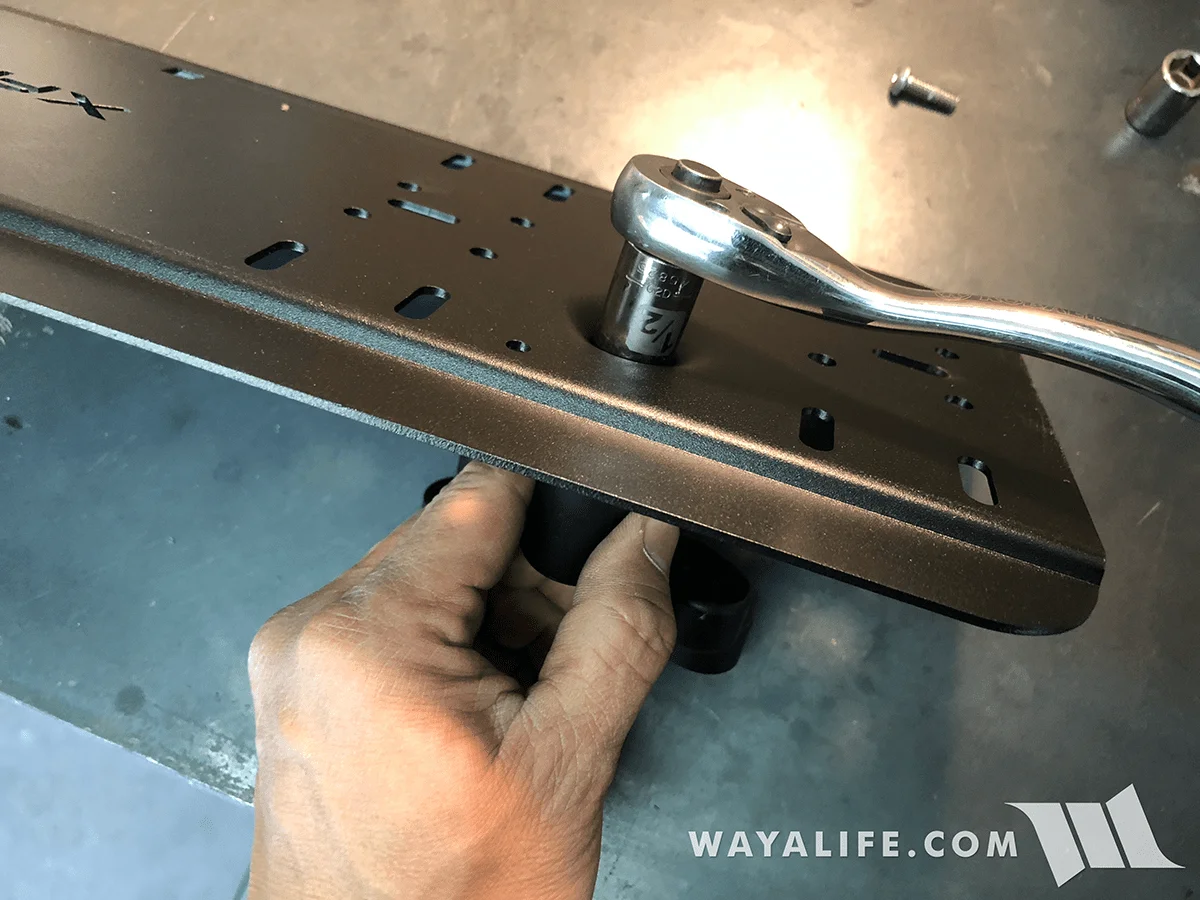

4. Loosely install your RotopaX RX-LOX-PM Pack Mount Lock and RX-DLX-PM Deluxe Pack Mount onto the RX-UP Universal Mounting Plate using the hardware provided. A 1/2" socket will be needed for this job.
5. Place the assembled mounting plate onto your Rotopax making adjustments to the pack mounts as needed for a good fit. Then, use a 1/2" socket to tighten and secure the pack mounts in place.

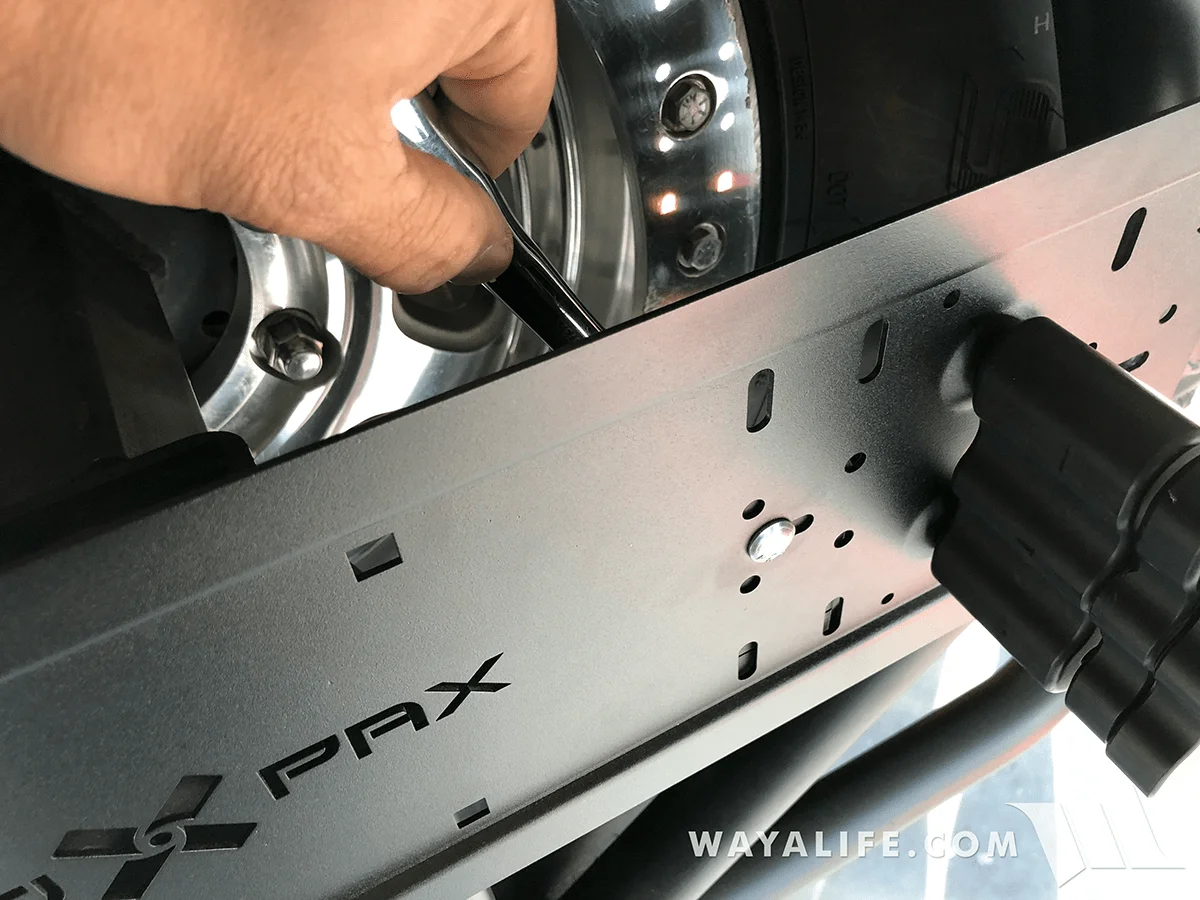

6. Secure the assembled Rotopax pack mount onto the KC Tube Clamp using 1/4"-20 carriage bolts, washers and nuts. A 7/16" socket or wrench will be needed for this job.

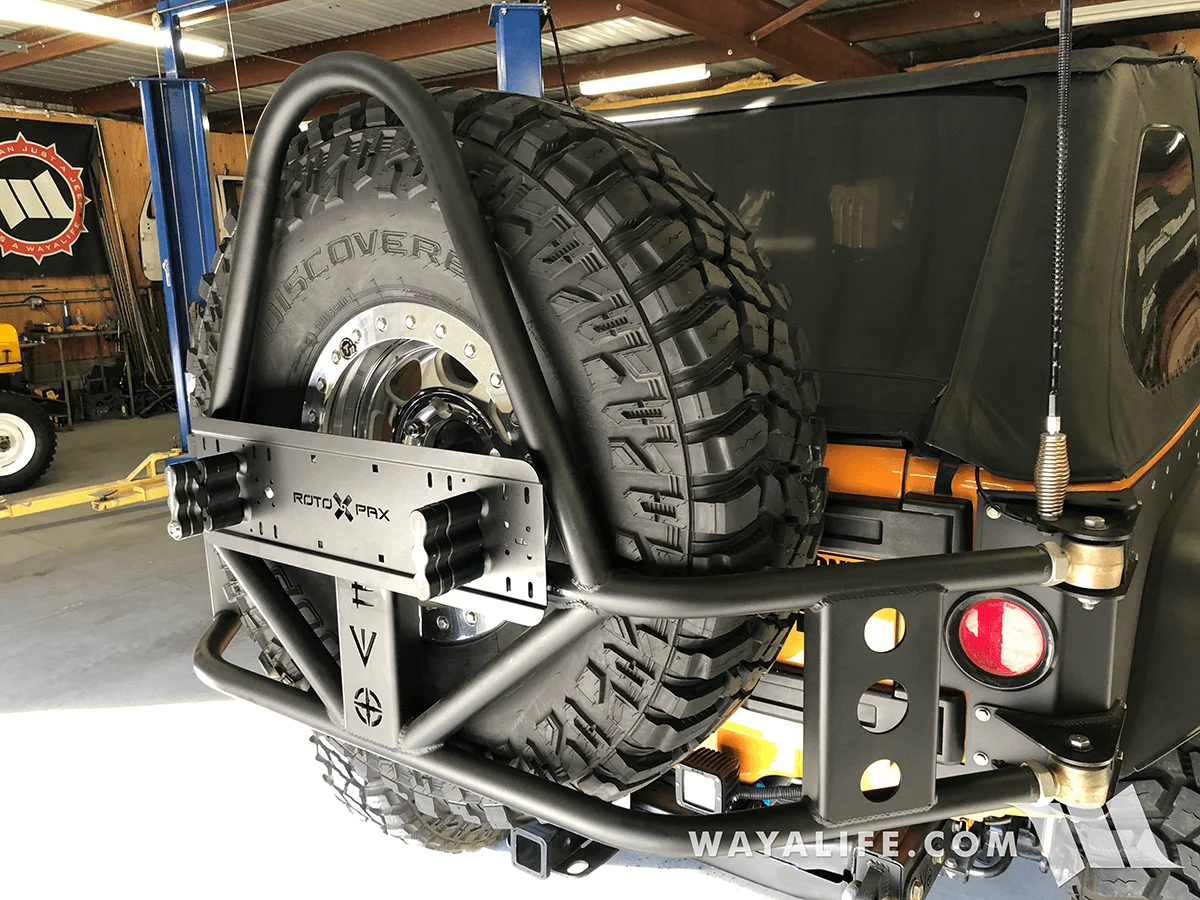

Here's a shot of what the Rotopax mount will look like installed on your EVO Tire Carrier.

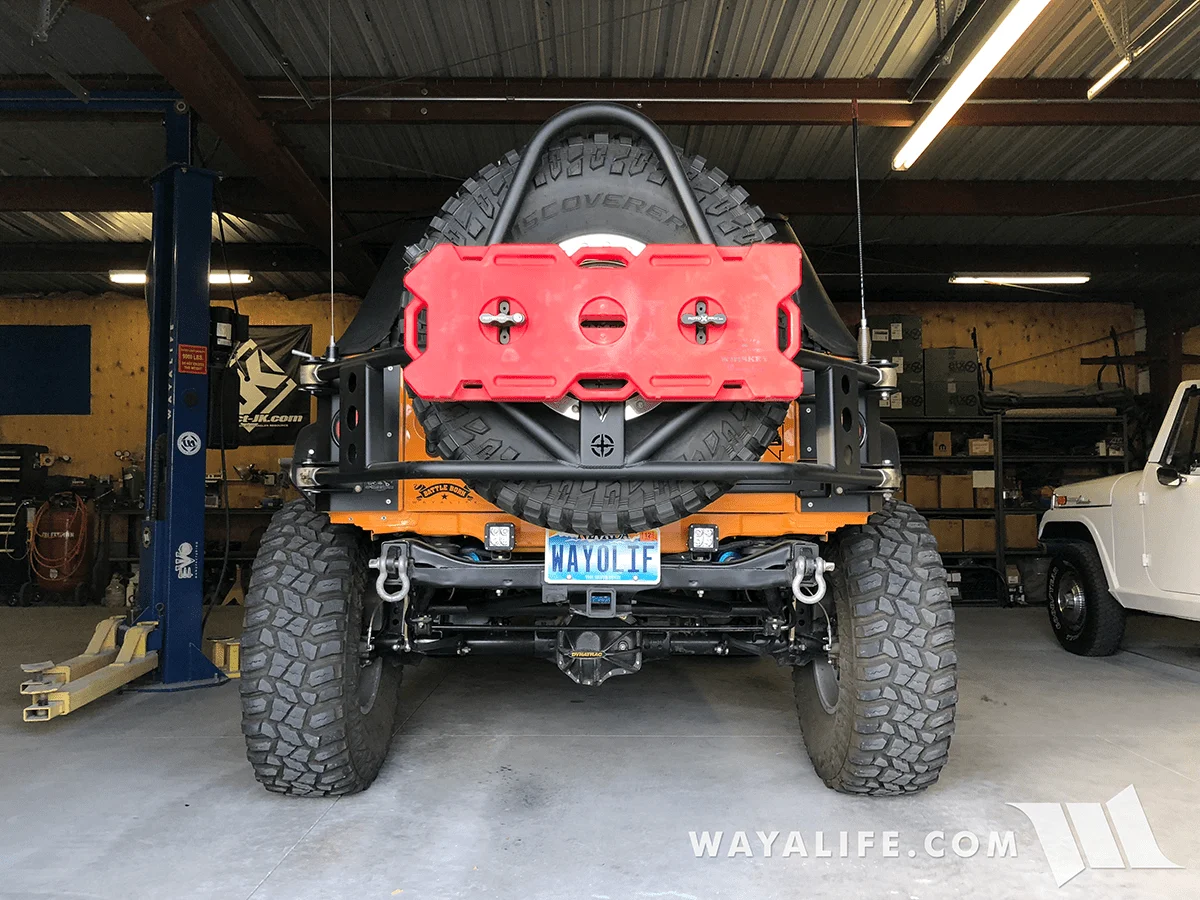

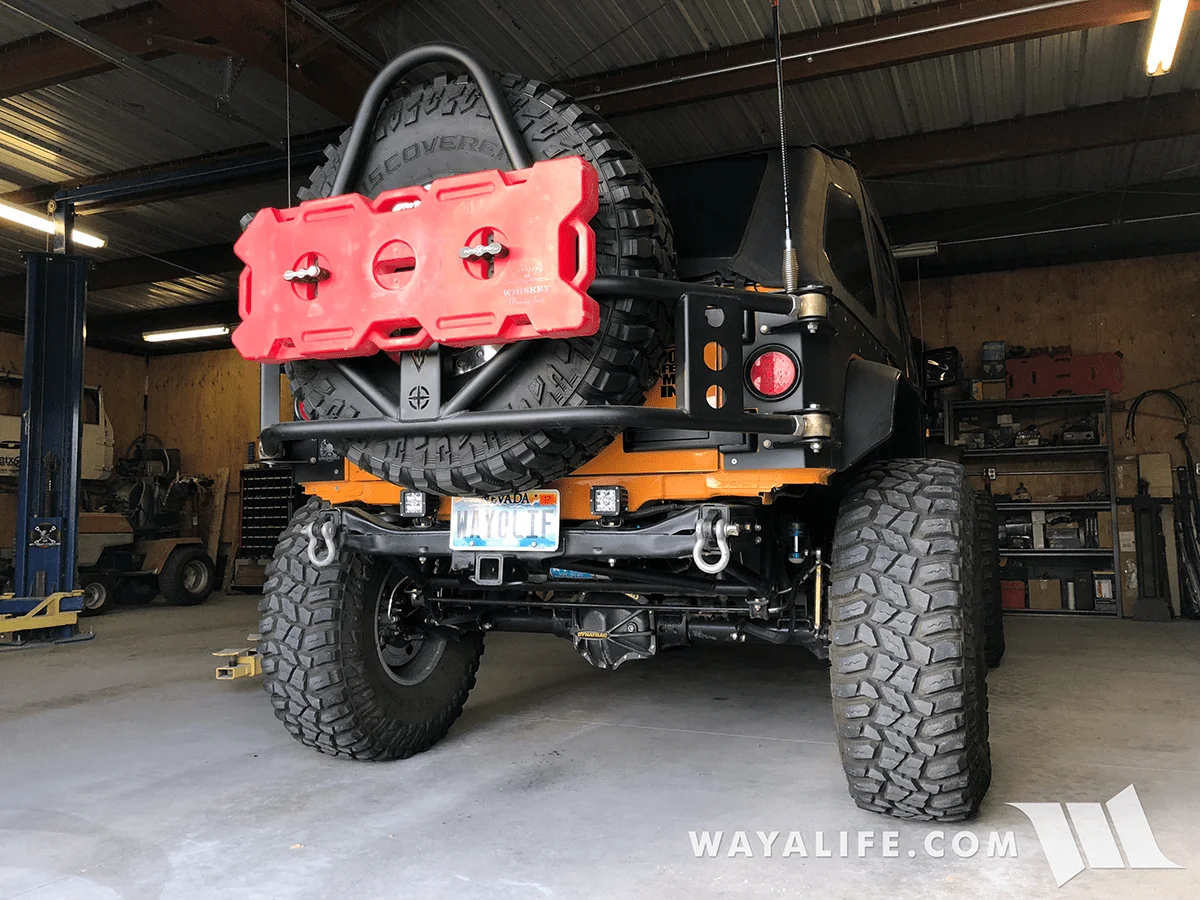

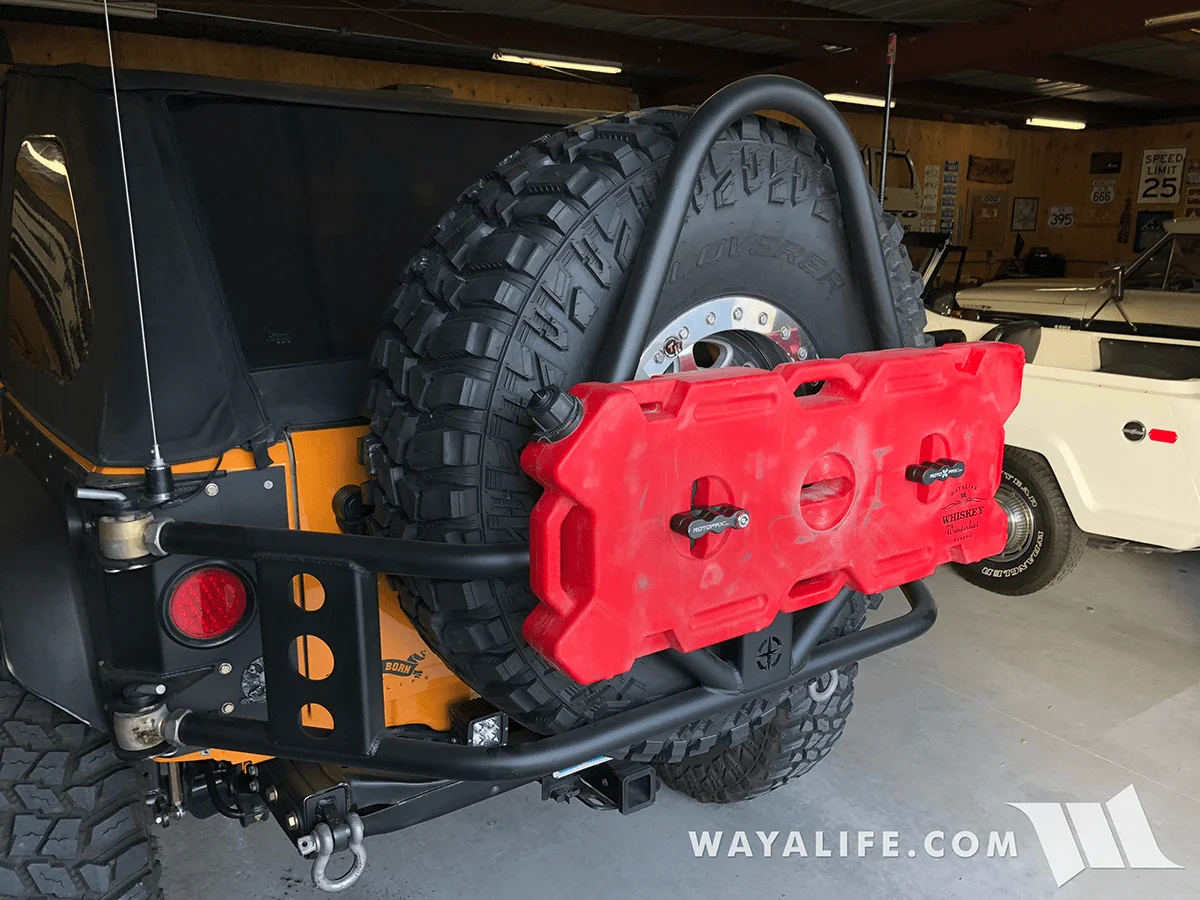

And finally, here's what everything looks like with the Rotopax installed.

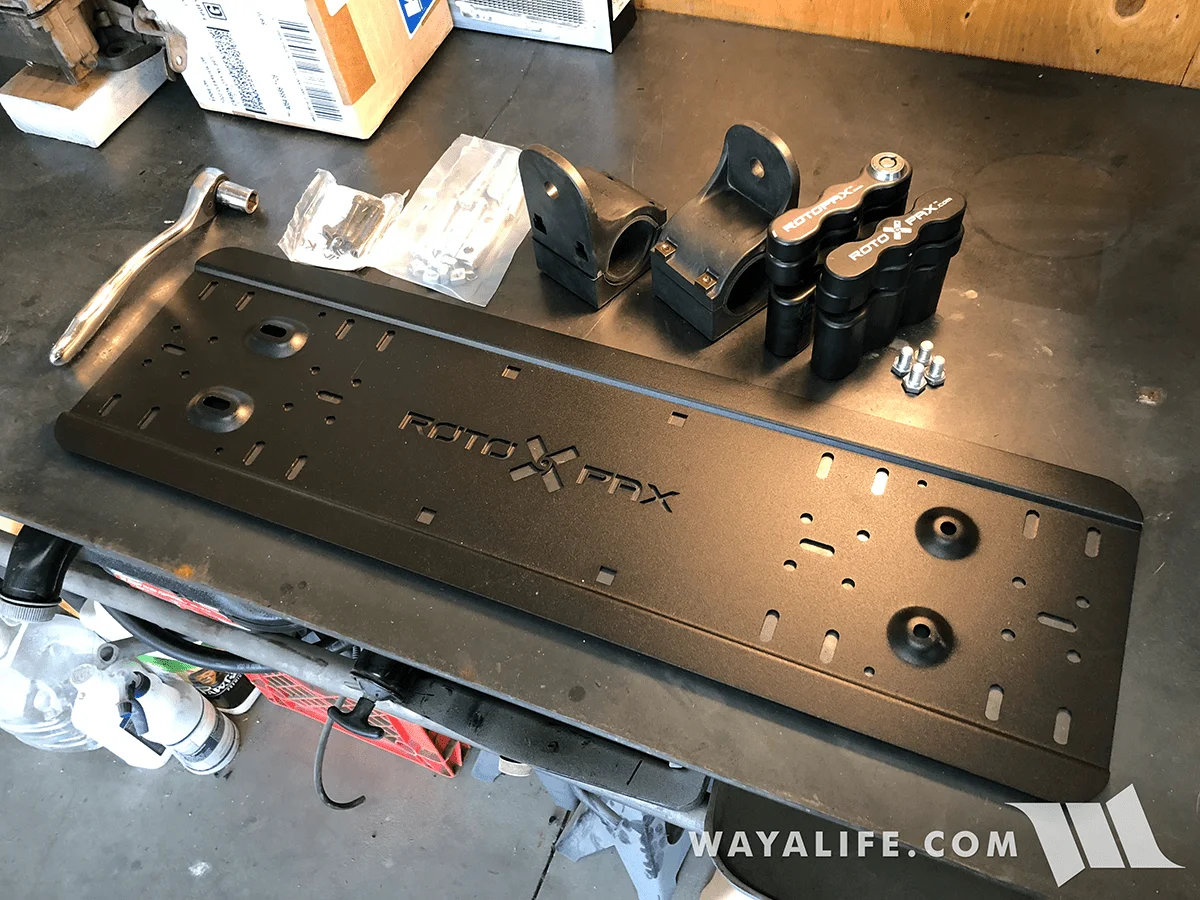

What you'll need:
- RotopaX RX-UP Universal Mounting Plate
- RotopaX RX-LOX-PM Pack Mount Lock
- RotopaX RX-DLX-PM Deluxe Pack Mount
- KC HiLiTES 7307 Tube Clamp Mount Bracket for 1.75" to 2"
- (2) 1/4-20" Carriage Bolts
- (2) 1/4-20" Nuts
- (2) 1/4" Washers
- Ratchet
- 7/16, 1/2" Socket or Wrench
- 3/16" Allen Wrench
Instructions
1. Install both of the KC Tube Clamps onto your EVO tire carrier and loosely secure them in place using the hardware provided. A 3/16" allen wrench will be needed for this job.
2. Spread the 2 KC Tube Clamps apart so that the center of the mounting holes measure 12-1/2" apart.
3. Using a 3/16" allen wrench, tighten the KC Tube Clamp bolts.
4. Loosely install your RotopaX RX-LOX-PM Pack Mount Lock and RX-DLX-PM Deluxe Pack Mount onto the RX-UP Universal Mounting Plate using the hardware provided. A 1/2" socket will be needed for this job.
5. Place the assembled mounting plate onto your Rotopax making adjustments to the pack mounts as needed for a good fit. Then, use a 1/2" socket to tighten and secure the pack mounts in place.
6. Secure the assembled Rotopax pack mount onto the KC Tube Clamp using 1/4"-20 carriage bolts, washers and nuts. A 7/16" socket or wrench will be needed for this job.
Here's a shot of what the Rotopax mount will look like installed on your EVO Tire Carrier.
And finally, here's what everything looks like with the Rotopax installed.
