2013 Jeep Wrangler 3.6L Starting Issues After Doing Lifters and Timing Chain

BrandonB

New Member
Joined
Feb 17, 2024
Messages
1
Location
Ontario, Canada
My 2013 Jeep Wrangler 3.6L barely starts after I finished doing my timing chain and rockers/lifters. One of my timing chain guides had failed and broke causing a ticking/clacking noise. After pulling it all apart and installing a new Melling timing chain kit along with sprockets the vehicle will no longer start/ stay running unless I pull one of the vacuum lines off the intake. It will then stay running but is very rough. Without the vacuum leak it will crank for a few seconds and then turn on and immediately shut off. I was meticulous about the timing marks and followed the Melling video to a tee. All the timing marks on the cams and main timing sprocket were as they should be with piston #1 at TDC. I've gone over all the plugs and sensors and they're all plugged in properly. The camshaft and crank shaft sensors are functioning and the only check engines codes I get related to the engine are P0300 (Multiple Cylinder Misfires), P258B (Electric Vacuum Pump Performance), and P0113 (Intake Air Temperature Sensor 1 Circuit High). Also my exhaust cams are sitting at negative 5 to 6 degrees compared to my intake cams which sit around negative 2 and positive 1 while I have it running with the vacuum leak. Where as my sisters jeep they all sit around 0 to negative 2 degrees while her jeep is running normally as shown in the pictures below. Has Anyone dealt with something similar or have any ideas/ solutions for this problem?

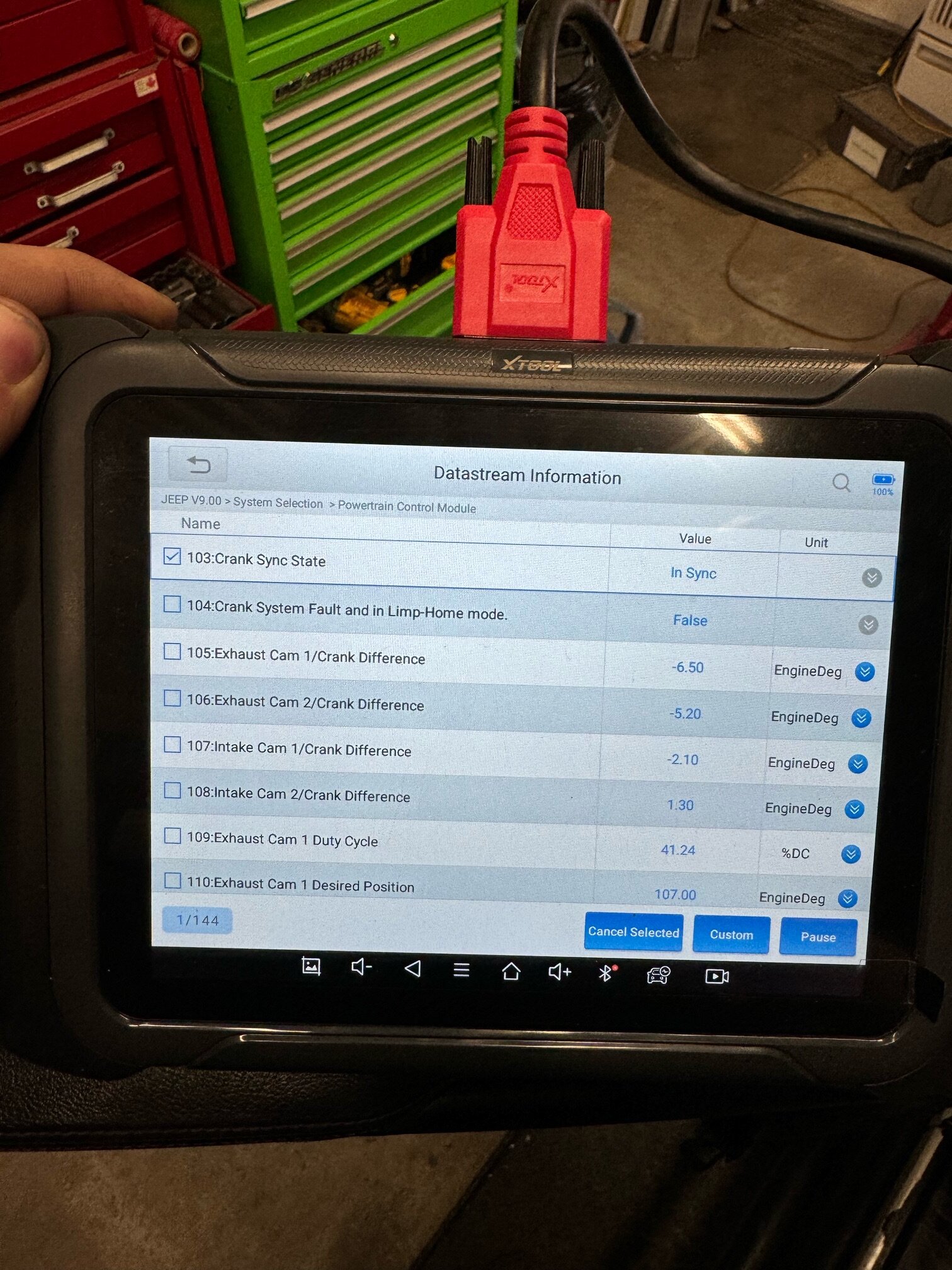

My Jeep.jpeg

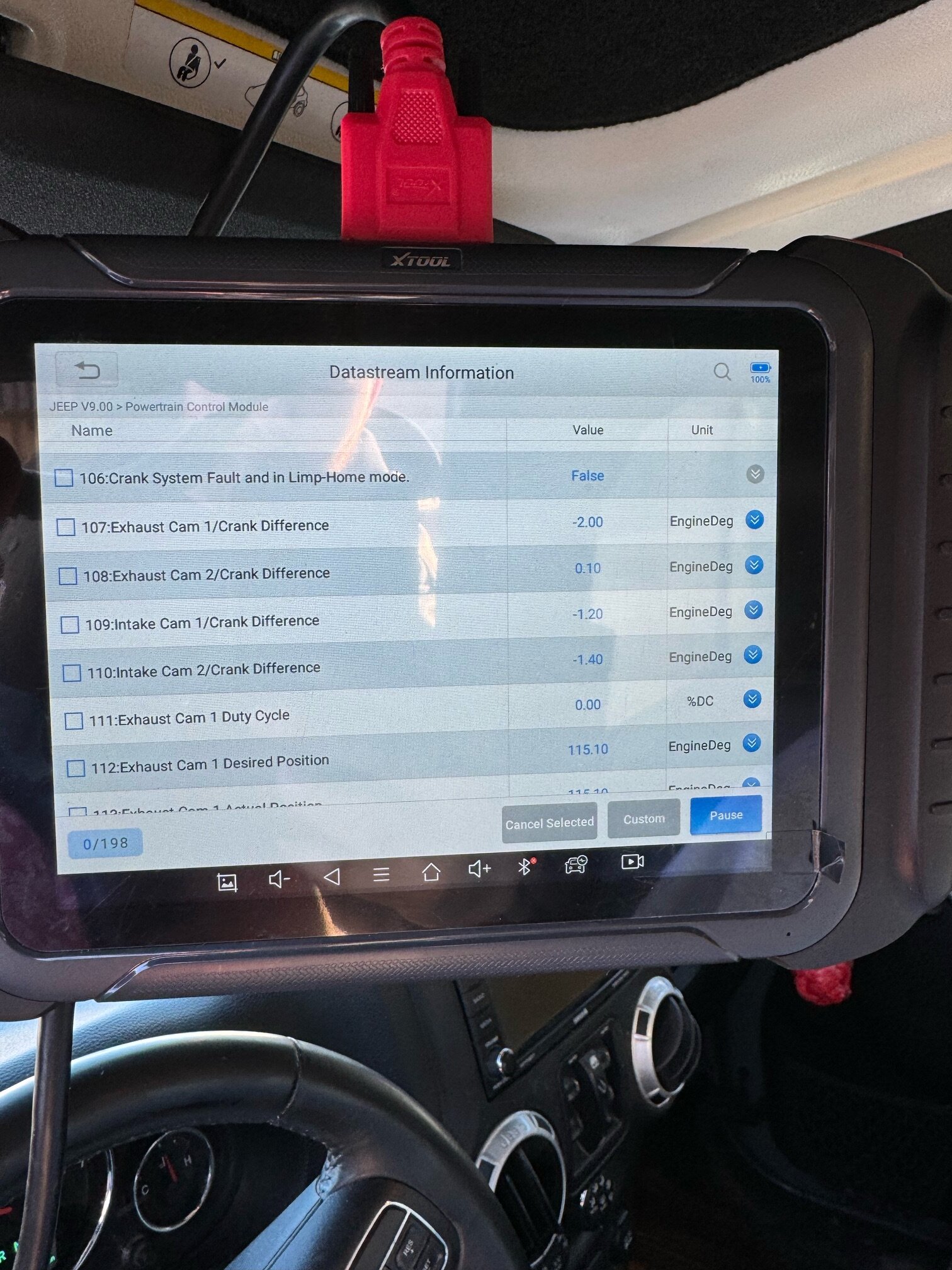

My Sisters Jeep.jpeg

From the data you've provided it seems as though either your cams sprockets are off maybe by a tooth or the phasers aren't working properly. Possibly some debris got in the oil circuit during the repair?

  • Like
Reactions: vaffanculo
From the data you've provided it seems as though either your cams sprockets are off maybe by a tooth or the phasers aren't working properly. Possibly some debris got in the oil circuit during the repair?
Hi new guy here. I am going thru a similar issue with my 2014. new timing chain, rocker, lifters, oil cooler, oil pump. cam sensors, cam phaser postion sensors. water pump, thermostat, belt tensioner, and I have an aluminum lower intake on way from amazon.My plastic lower intake is shot. . Did you soak the lifters over night? Make sure your vaccum lines ARE connected. Did you make sure the throttle body wiring is connected? Anyway I have the Autel MX900 bi direction scanner. Do several phaser cleanings, both intake and exhaust. reset the ECM and do a cam relearn. Reset the RPM's to 900 that should get you running.Somuch for hsrbor freight torque wrenches. Note: The Engine Camshaft Cam Phaser Actuator Position Sensor pin should move freely, There like 16 bucks each, I just repalced all 4 cause I plan on getting anouther 100K miles out of this block. Alittle late but going to do a leak down test this coming friday(next day I have off) . I'll keep you updated and please do same.
