2012-2018 Rear Side Window Dimensions

Speartip

Speartip

JK Addict
Supporting Member
Joined
May 8, 2022
Messages
1,077
Location
Victoria BC , Canada
Hello

Could one of you fine gentleman or ladies do me a solid . I’m looking for the measurement of rear side window in a hard top from a 2012 - 2018.

I am looking at the Rebel Off Road rear side window delete panels and was thinking of trimming to fit my 2008.
Just wondering how much trimming is involved . Windows are a little trapezoid shaped so centreline measurement would be great .
Thank You

  • Like
Reactions: JeepJeezy
Speartip said:
Hello

Could one of you fine gentleman or ladies do me a solid . I’m looking for the measurement of rear side window in a hard top from a 2012 - 2018.

I am looking at the Rebel Off Road rear side window delete panels and was thinking of trimming to fit my 2008.
Just wondering how much trimming is involved . Windows are a little trapezoid shaped so centreline measurement would be great .
Thank You
Click to expand...

Mine is a 2015 and is 27.5 inches wide and 16.5 inches high

  • Like
Reactions: Speartip
JeepJeezy said:
Mine is a 2015 and is 27.5 inches wide and 16.5 inches high
Click to expand...

Thank You @JeepJeezy .
Much appreciated .
2008 windows are
23 3/4 X 16 3/4
Inside dimensions are
21 1/4 x. 14 1/4.
So quite a sizeable lip for adhering glass or insert .

Rotopax 2 gallon is 18x13
Looking at pics the Rotopax fits quite snugly in the window delete panel .

So in theory it should fit once trimmed to size . Would order the set without lighting option .


Last edited:
Speartip said:
Thank You @JeepJeezy .
Much appreciated .
2008 windows are
23 3/4 X 16 3/4
Inside dimensions are
21 1/4 x. 14 1/4.
So quite a sizeable lip for adhering glass or insert .

Rotopax 2 gallon is 18x13

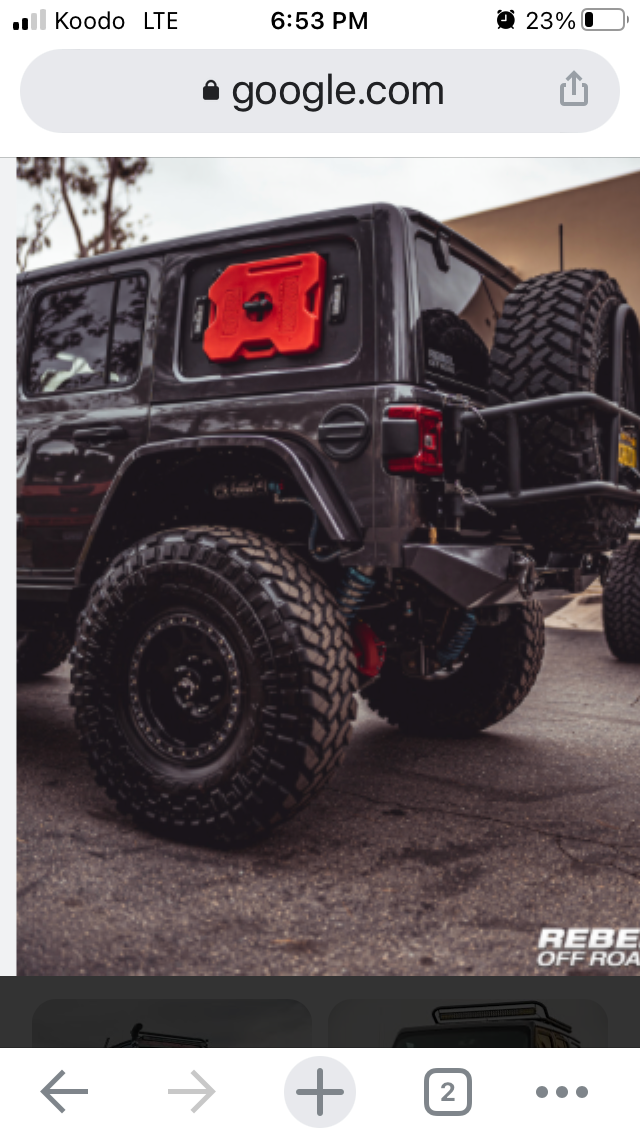

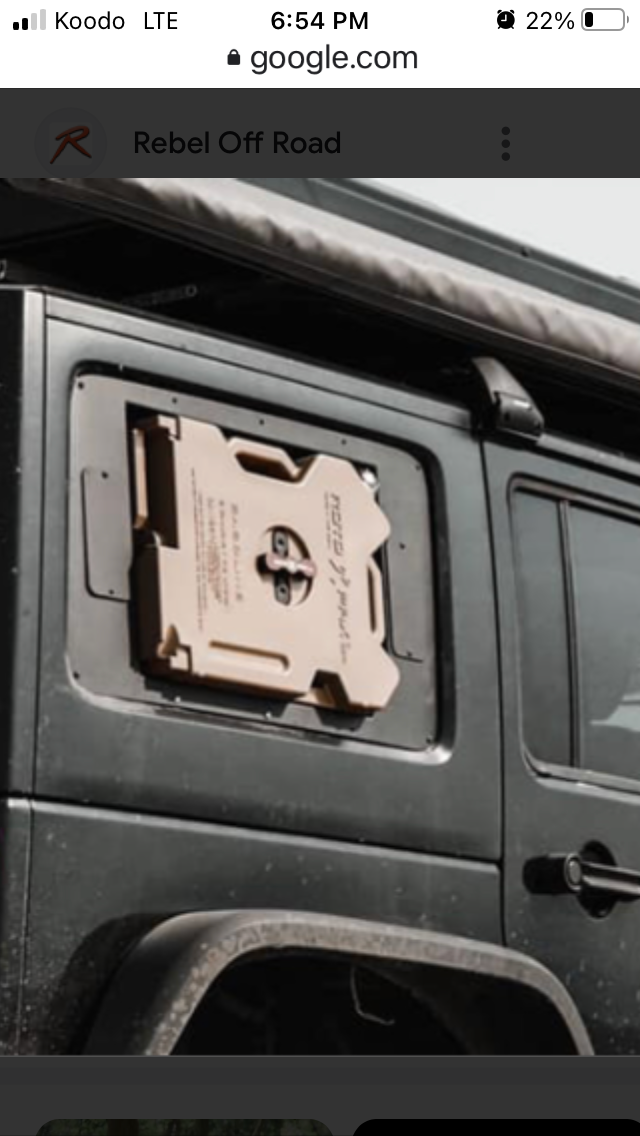

Looking at pics the Rotopax fits quite snugly in the window delete panel .

So in theory it should fit once trimmed to size . Would order the set without lighting option .

View attachment 127803View attachment 127804
Click to expand...

Have you watched their YouTube install video?

  • Like
Reactions: Speartip
JeepJeezy said:
Have you watched their YouTube install video?
Click to expand...

Just watched it .
The pinch backing strips will need to be trimmed as well
Def plan was to bring in to have glass removed but will install myself . Going to use glass as template .
Think it will work out well
Have a couple other things to take of before I pull the trigger .

  • Like
Reactions: JeepJeezy
Speartip said:
Just watched it .
The pinch backing strips will need to be trimmed as well
Def plan was to bring in to have glass removed but will install myself . Going to use glass as template .
Think it will work out well
Have a couple other things to take of before I pull the trigger .
Click to expand...

Nice! Keep us posted!

  • Like
Reactions: Speartip
JeepJeezy said:
@Speartip not sure where you are on this project, but I just came across this set-up

JOYTUTUS JK Rear Window Storage Panel Kit Compatible with Wrangler JK 2007-2018, Wrangler Storage Accessories Mounting Plate Kits for Gas Can Mount Recovery Traction Boards Mount https://www.amazon.com/dp/B0D635PT6Q?tag=jkforum-20
Click to expand...

Thanks @JeepJeezy .
Looking at the design . Top of support bolts to the roof .
Where other models bolts to the gutter above window .
The 08-11 doesn’t have gutter above rear side windows .
Would def be easier install .
Kinda like the cleaner line of the Rebel Offroad as it’s sunken into the window opening . Will have to think about it . Thanks again.
Much appreciated .

  • Like
Reactions: JeepJeezy
Speartip said:
Thanks @JeepJeezy .
Looking at the design . Top of support bolts to the roof .
Where other models bolts to the gutter above window .
The 08-11 doesn’t have gutter above rear side windows .
Would def be easier install .
Kinda like the cleaner line of the Rebel Offroad as it’s sunken into the window opening . Will have to think about it . Thanks again.
Much appreciated .
Click to expand...

The gutter above that window started in 2018 with the JL. The JK gutter stops at rear doors and never went any further. Rebel definitely is a cleaner look. You're welcome. Keep us posted!
