Trying to locate circuit diagram

[Hulkamania]

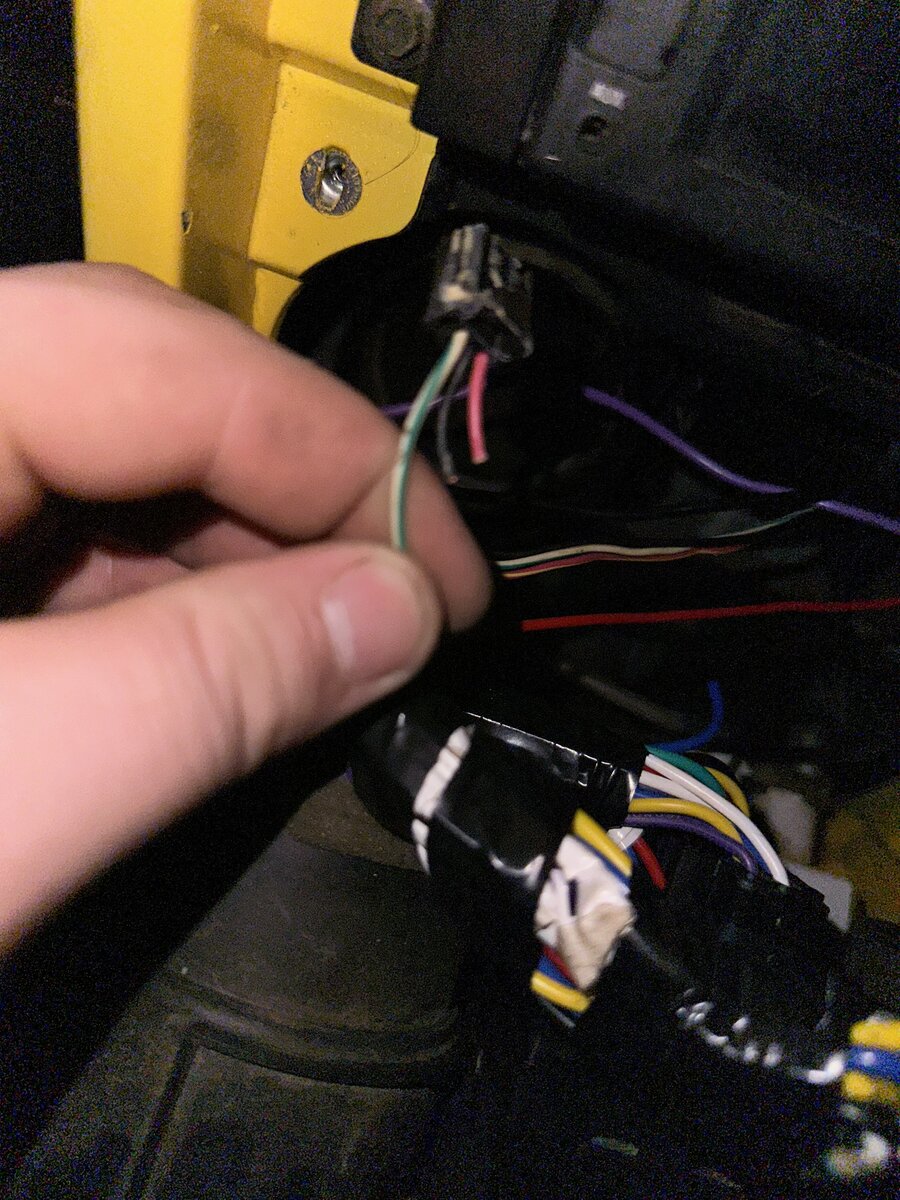

I’m trying to locate a a certain diagram along with the fuse on my 2008 Jeep wrangler unlimited x. Attached is a he colors off the 3 wire connector that is in the dash. The colors are pink with yellow, black and white with a green stripe.any help is appreciated



[BLACKJKU]

Did you look here for anything?

JK and JL Factory Service Manuals

https://www.techauthority.com/ 2008 and 2009 Service Manuals https://servicingmanuals.com/cars/jeep/wrangler/ https://www.onlymanuals.com/jeep/wrangler More...

wranglerjkforum.net



[Hulkamania]

Did you look here for anything?

http://[URL]https://wranglerjkforum.net/threads/jk-and-jl-factory-service-manuals.29798/

[/URL]

I have not but will look in it. Thanks
