Can someone go look at their door seals for me?

[f22beaver]

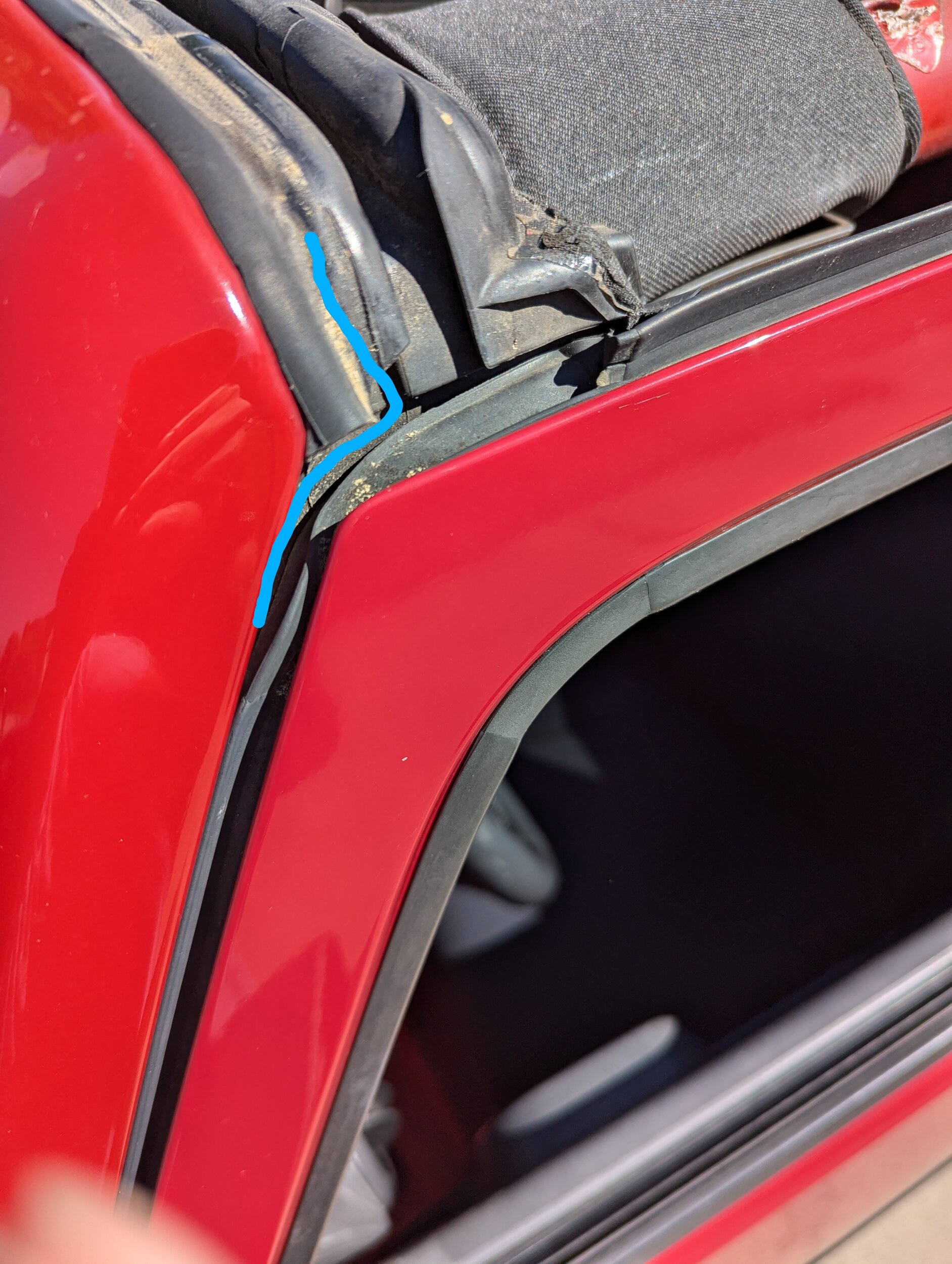

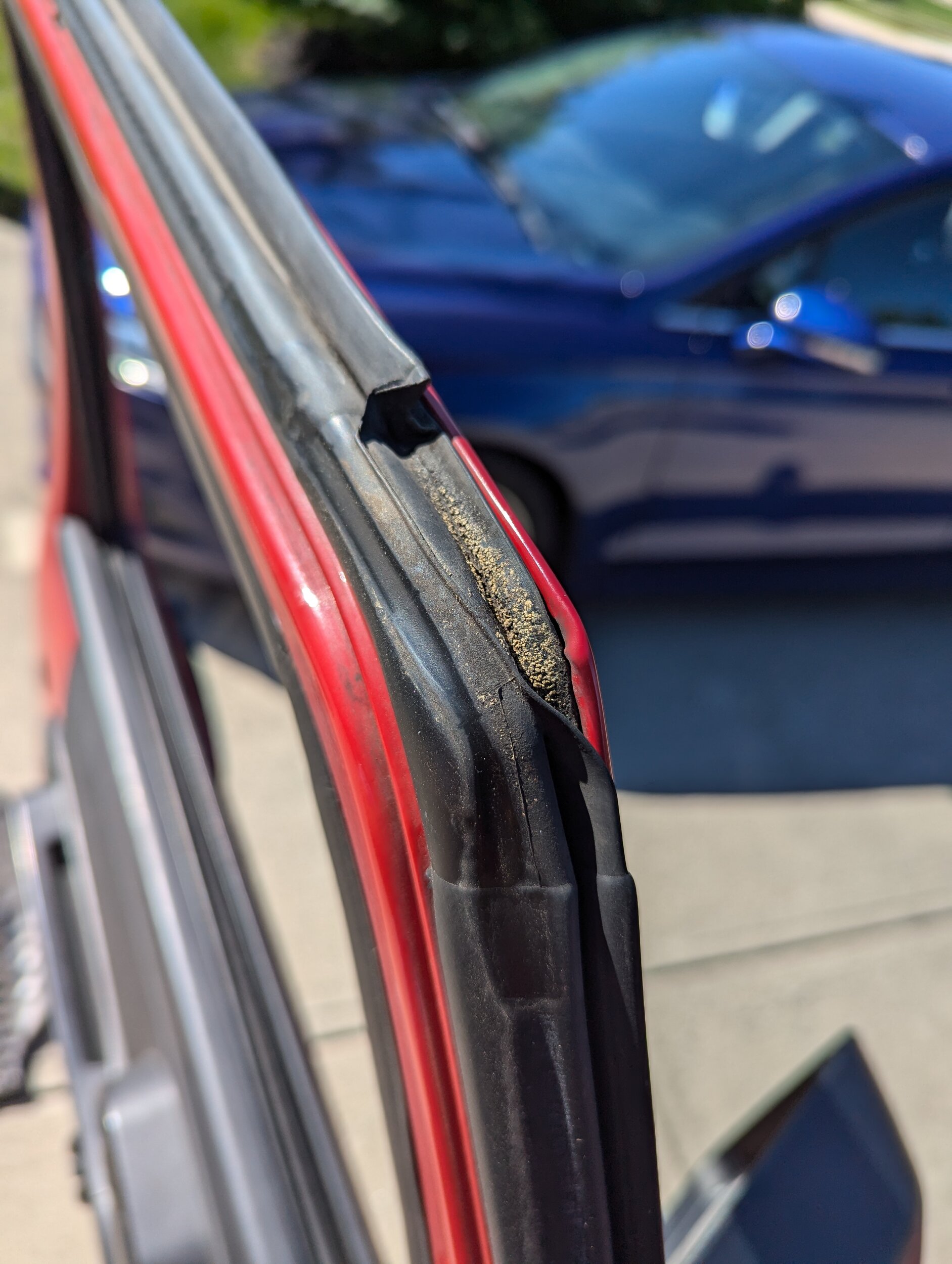

2008 JK. Soaked front carpet. I'm redoing the T-tops foam, but watching the water travel the other day I think I've actually got a door seal issue. With my beautiful paint skills I've tried to show how I think water is ingressing. Should the lip on the corner actually be tighter to the pillar?



[Cimmerian]

I have the same issue although very minor and it's absolutely the door seal. Mopar makes an improved over factory seal for these - 55395275AW and 55395274AW for the front doors.



[f22beaver]

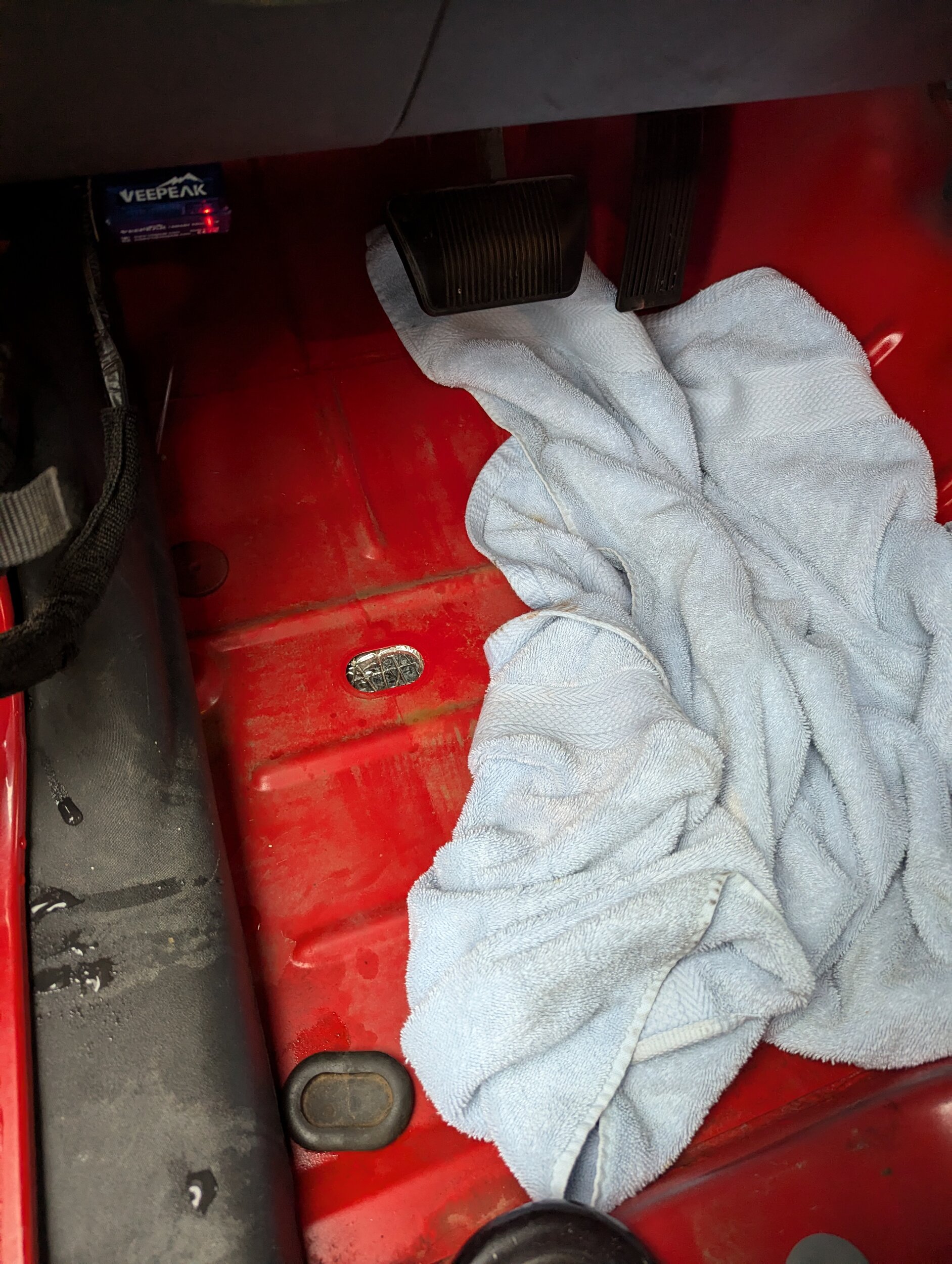

I ended up buying the OmixAda, which is still rev AU, and here's my floor pan after Beryl rained at our house the last 24 hours. So yeah. I'd agree those seals were bad @Cimmerian

I don't doubt the new AW is probably better, but I made an assumption that mine were probably original to 2008, so even my slightly older new stock would be better than what I had.

I also couldn't tell if my passenger floor had some moisture or if when I opened the door it dumped in. So I need to check that one again later today after it keeps raining.
