New JK owner please help.


JKBLACK

New Member
Joined
Jan 4, 2022
Messages
10
Location
Crofton, Ne
Hey all we just bought our first wrangle and love it, but i have some bugs to work out. I'm getting some error codes and I have a couple ground straps thats are disconnected and im not sure where they go. Please chime in if you can thanks

OP
JKBLACK

JKBLACK

New Member
Joined
Jan 4, 2022
Messages
10
Location
Crofton, Ne

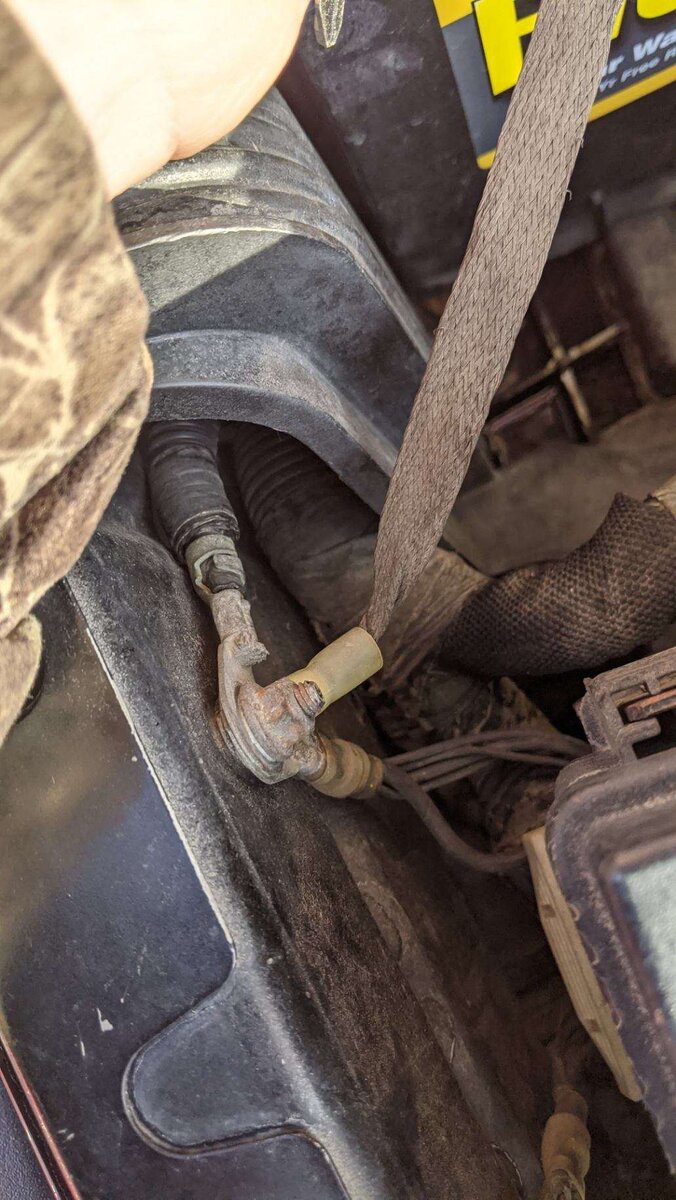

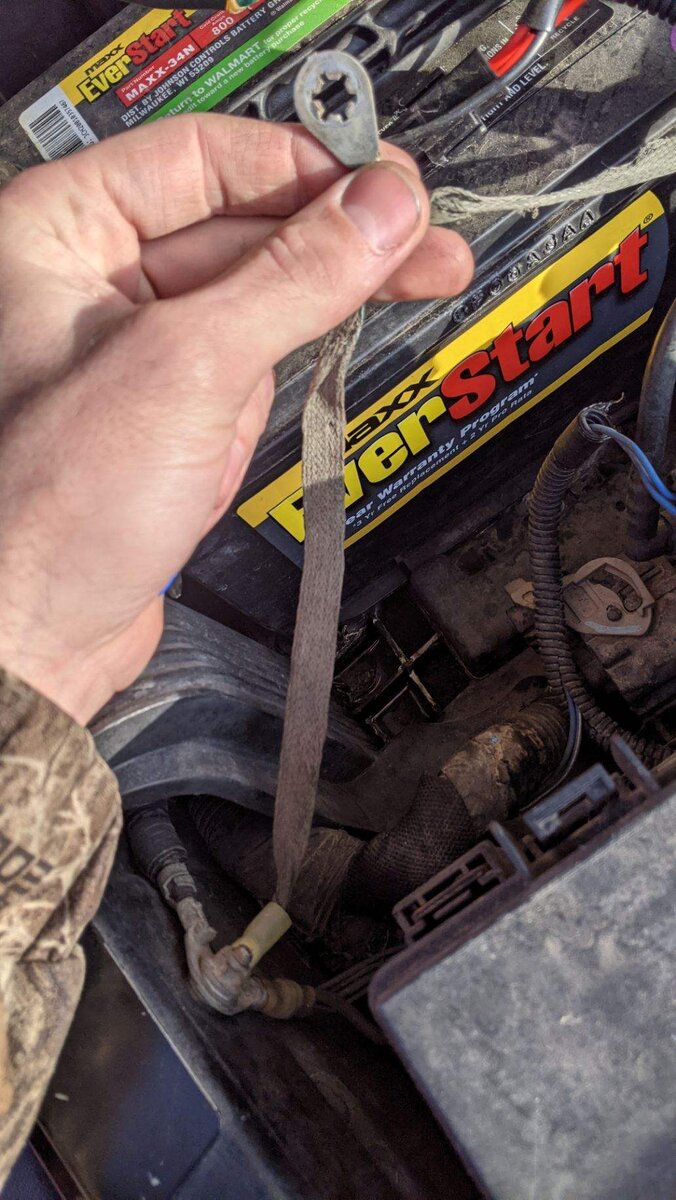

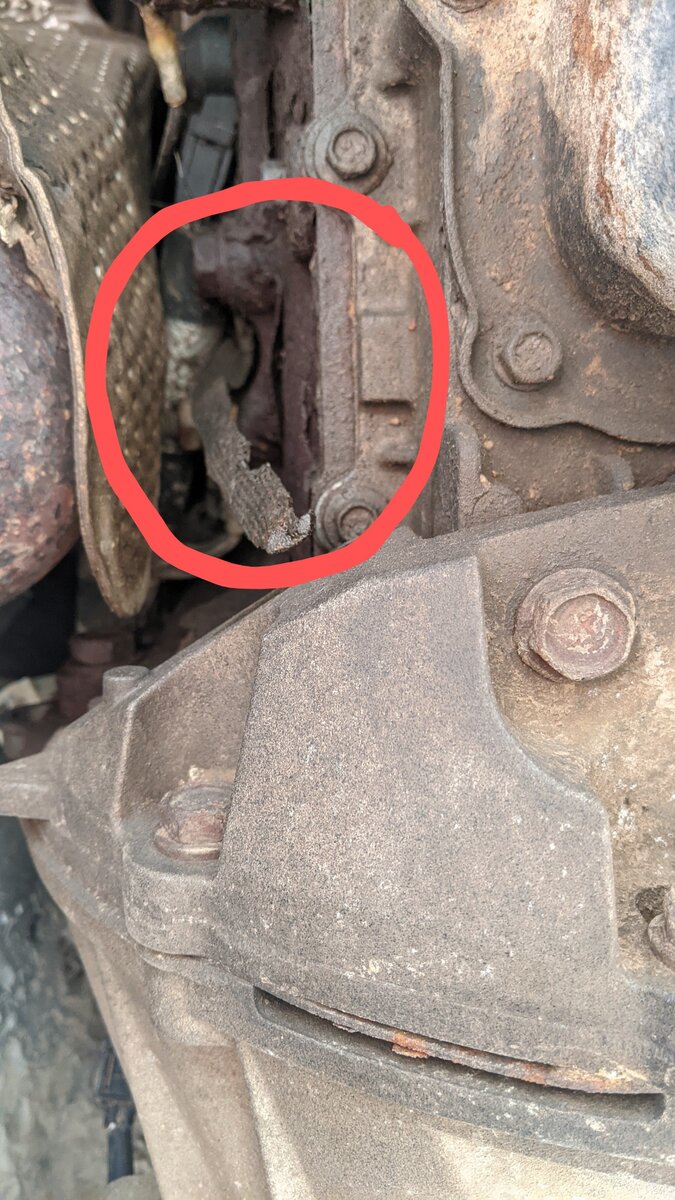

2 separate wires here. The first picture wire is broke. And the rest show two ends of wire with it disconnected at center and no ground to hood











Danarch

JK Enthusiast
Supporting Member
Joined
Mar 9, 2021
Messages
317
Location
Orangevale, CA

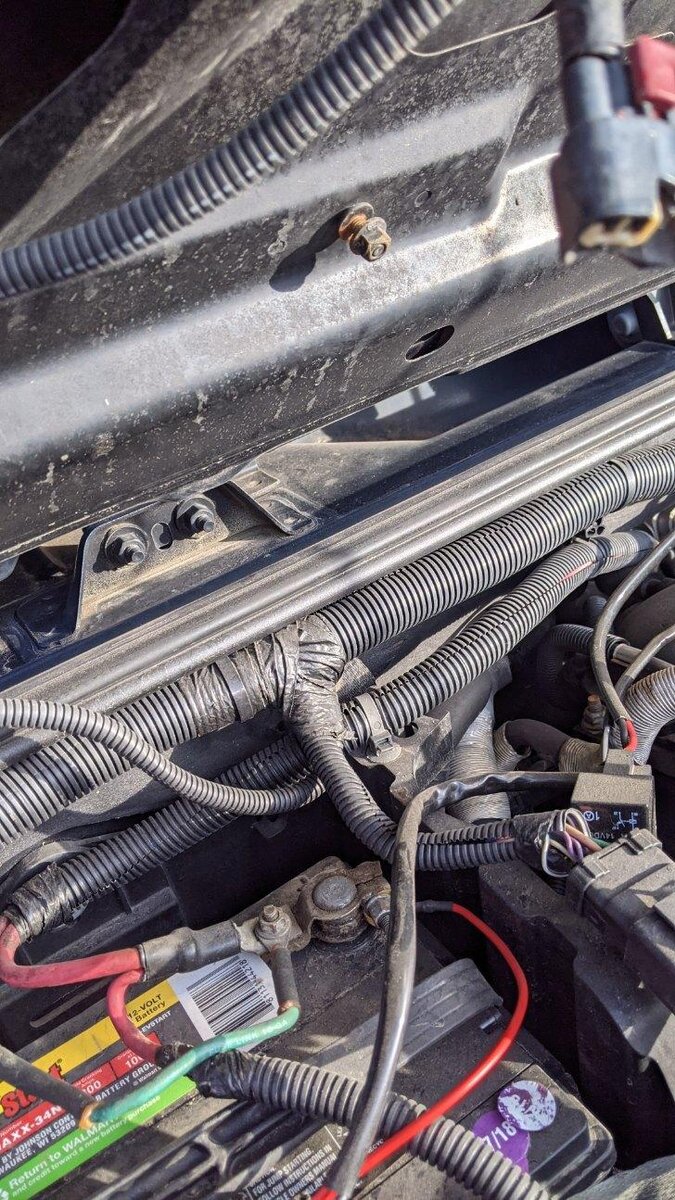

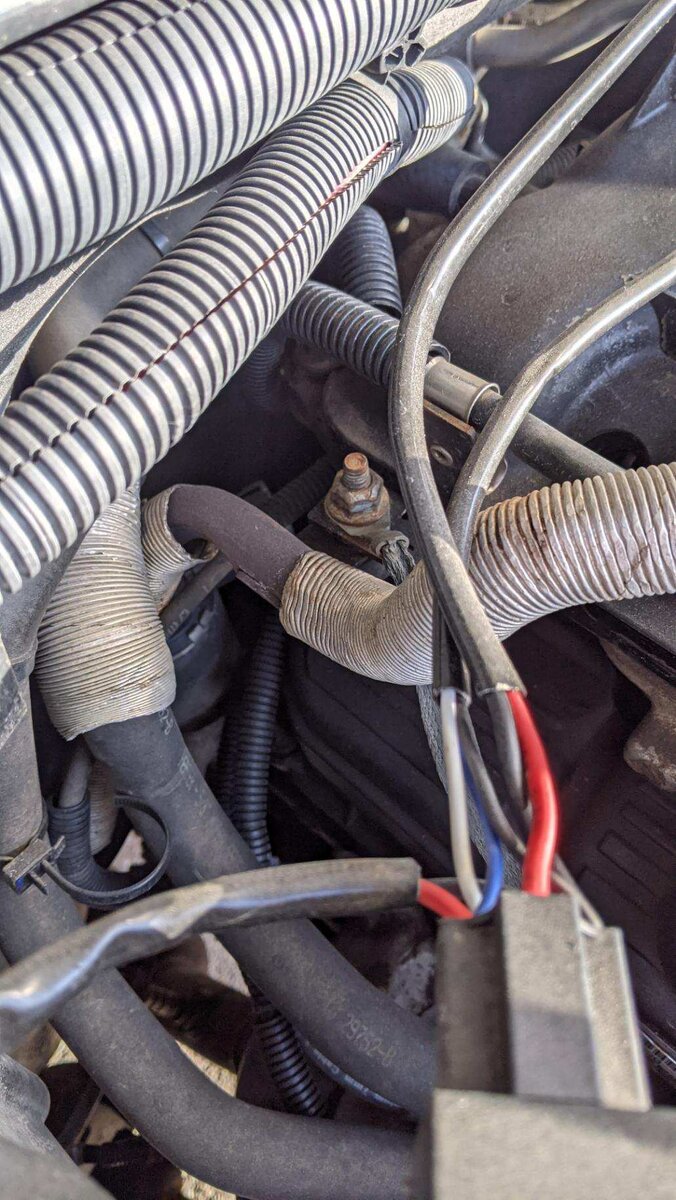

Not sure of the question. That is a ground and should be repaired and I believe attaches to the stud on the hood In the third picture.

OP
JKBLACK

JKBLACK

New Member
Joined
Jan 4, 2022
Messages
10
Location
Crofton, Ne
Sorry about that. The first thing I want to tackle is the ground wires. Im not sure where they all attach. The broken one comes up to the hood? Ill bring up the codes I'm getting after I fix the ground wires.


BLACKJKU

Moderator
Staff Member
Lifetime Supporting Member
Joined
Feb 22, 2020
Messages
2,580
Location
Huntington In
Starting with the battery ground clean both ends of the cable and battery post.

On the inside of the fenders where you have pictures of the grounds take them off and clean.

Inside the Jeep on the footwell sides there are those studs also, left and right sides.

More then likely if your getting the o2 codes they are probably bad, replace the o2's with OEM.

OP
JKBLACK

JKBLACK

New Member
Joined
Jan 4, 2022
Messages
10
Location
Crofton, Ne
Ok I checked them with a multimeter and they were all sending a signal at operating temp, but maybe the heater wires aren't working correctly ill check resistance on all them too.


Vman

JK Enthusiast
Joined
Aug 23, 2021
Messages
192
Location
Pacific NW
Sorry I'm not very electrically inclined. When it comes to electrical schematics I'm pretty lost.

I ordered the ground straps to replace mine from the company in this video. Great replacements.

Here is a video outlining the locations. He also goes into detail on the length required and the eyelet sizes so you can order them.



Mangotango

New Member
Joined
Jan 8, 2022
Messages
1
Location
Spirit Lake Idaho
Starting with the battery ground clean both ends of the cable and battery post.

On the inside of the fenders where you have pictures of the grounds take them off and clean.

Inside the Jeep on the footwell sides there are those studs also, left and right sides.

More then likely if your getting the o2 codes they are probably bad, replace the o2's with OEM.
Just went through this with my new to me 2011JK. O2 sensor was throwing a code so dealer I bought it from replaced it with a new Bosch unit. Still got code so the sent me to a jeep dealer and they discovered that the Bosch unit was not comparable, replaced it with factory unit and problem solved.

  • Like
Reactions: mrjp and BLACKJKU
OP
JKBLACK

JKBLACK

New Member
Joined
Jan 4, 2022
Messages
10
Location
Crofton, Ne
Thanks all. I found a few leaks looks like from the manifold gaskets, and where it meet the piping for the cat I also tested my cats with infared thermometer and the cats at the rear had similar temperatures on both ends the front ones had higher temps up front does this mean my rear cats have failed as well? Could the exhaust leak throw something off?
