I am trying to wire up some H4 headlights for the wife's jeep. I am putting in sealed beam halogens and have put together a wiring harness that runs from the battery through a set of relays, and uses the original passenger side headlamp socket connections as the trigger. My wife did not like the LED lights I installed and the OEM tea lights were useless.
I got it all installed and then discovered that it does not work...sigh...
Too dark now to see what I did wrong so going back at it tomorrow. I connected all the grounds, and remembered to put a fuse in the hot leg, so I am thinking I must have crossed my wires somewhere.

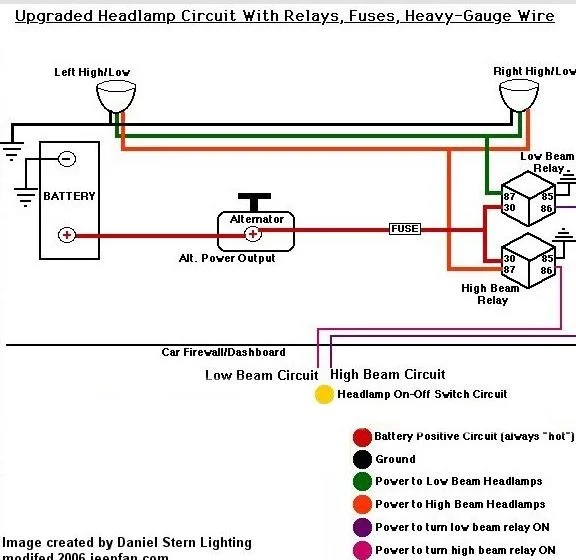

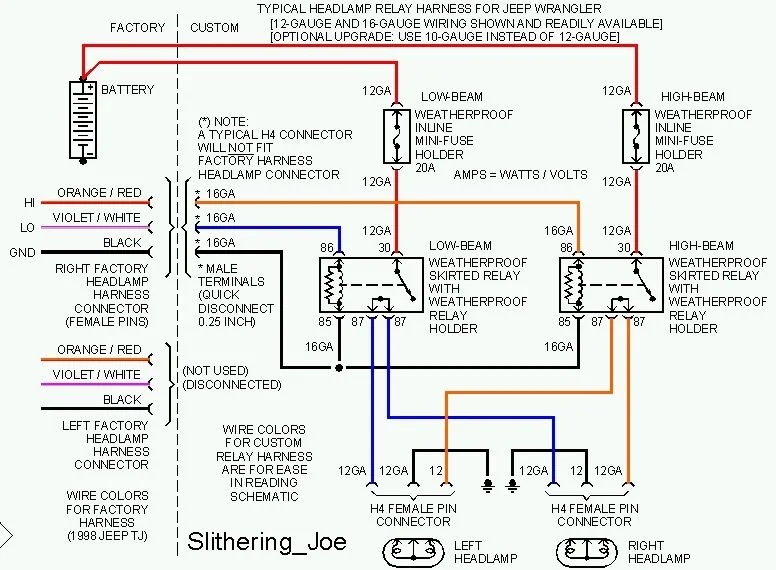

Has anyone else done this recently? is there some trick that maybe I am forgetting? see attached diagram for an example of what I am trying to do...2 different versions of basically the same thing.
Looking at this now, I think I might have goofed on wiring up the factory headlamp harness connection and swapped one of the leads and ground. Neither the high or lowbeams work, so it has to be something I did common to both.
